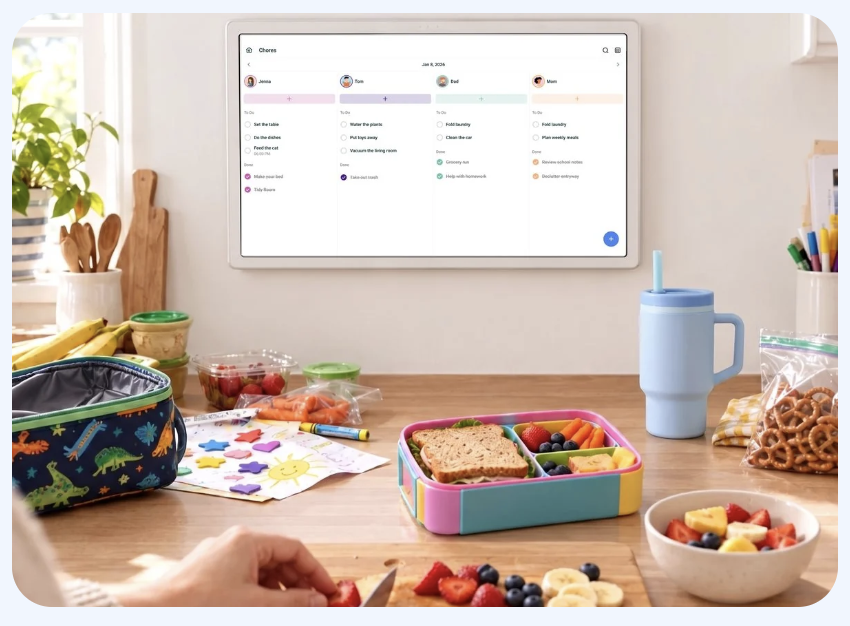

You can mount your FamilyWall Home Hub on a wall to create a convenient, central place for your family to view schedules, tasks, routines, and more.
Before getting started, choose a location that’s easy for your family to see and use and is close enough to a power outlet.
Before you mount your Home Hub
- Choose a secure, flat wall surface.
- Position the Home Hub at a comfortable viewing and interaction height.
- Make sure the power cable can reach an outlet.
- Check for electrical wiring, plumbing, or other obstacles before drilling.
- Make sure the mounting hardware is appropriate for your wall type.

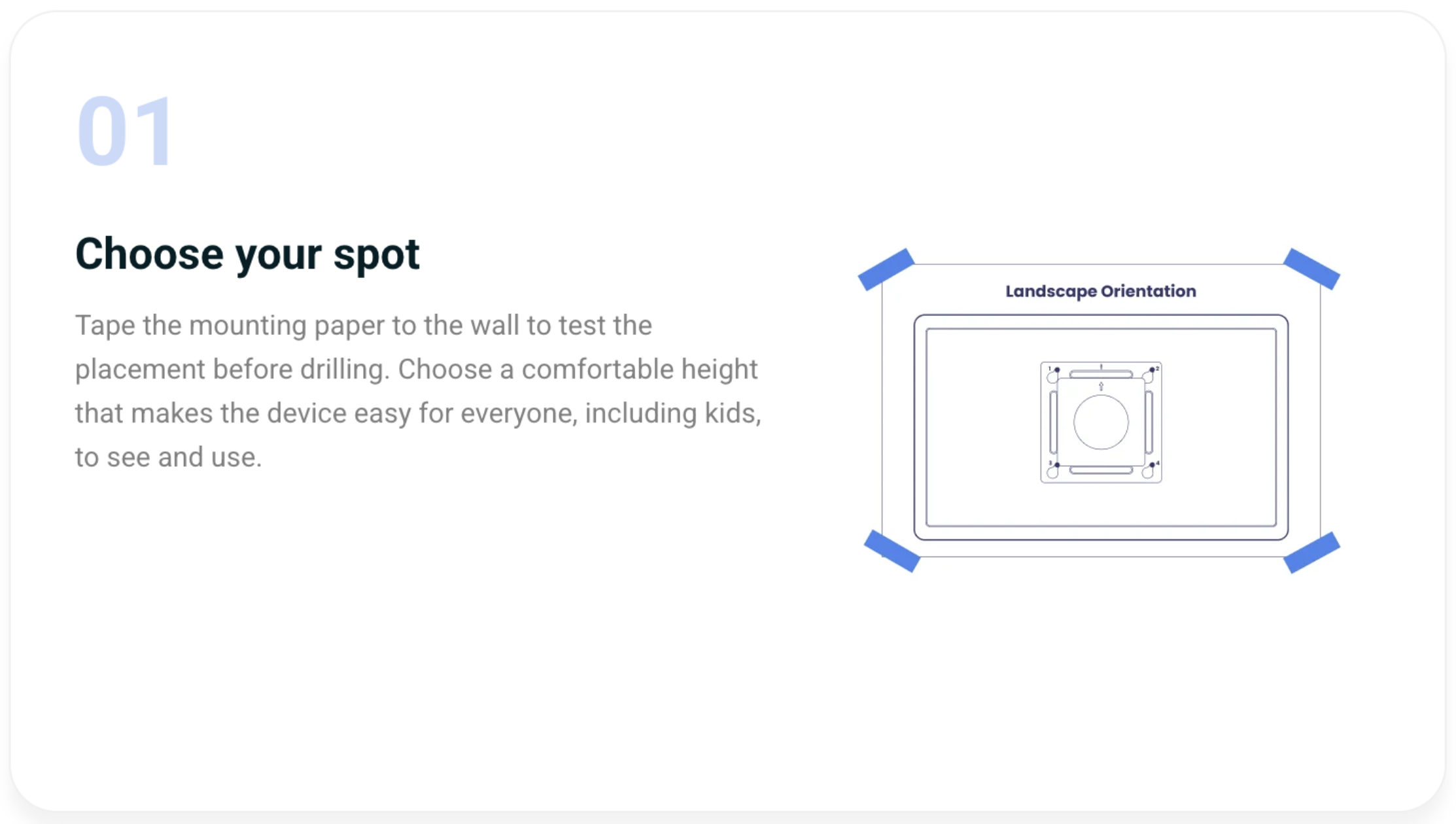

1. Choose your spot

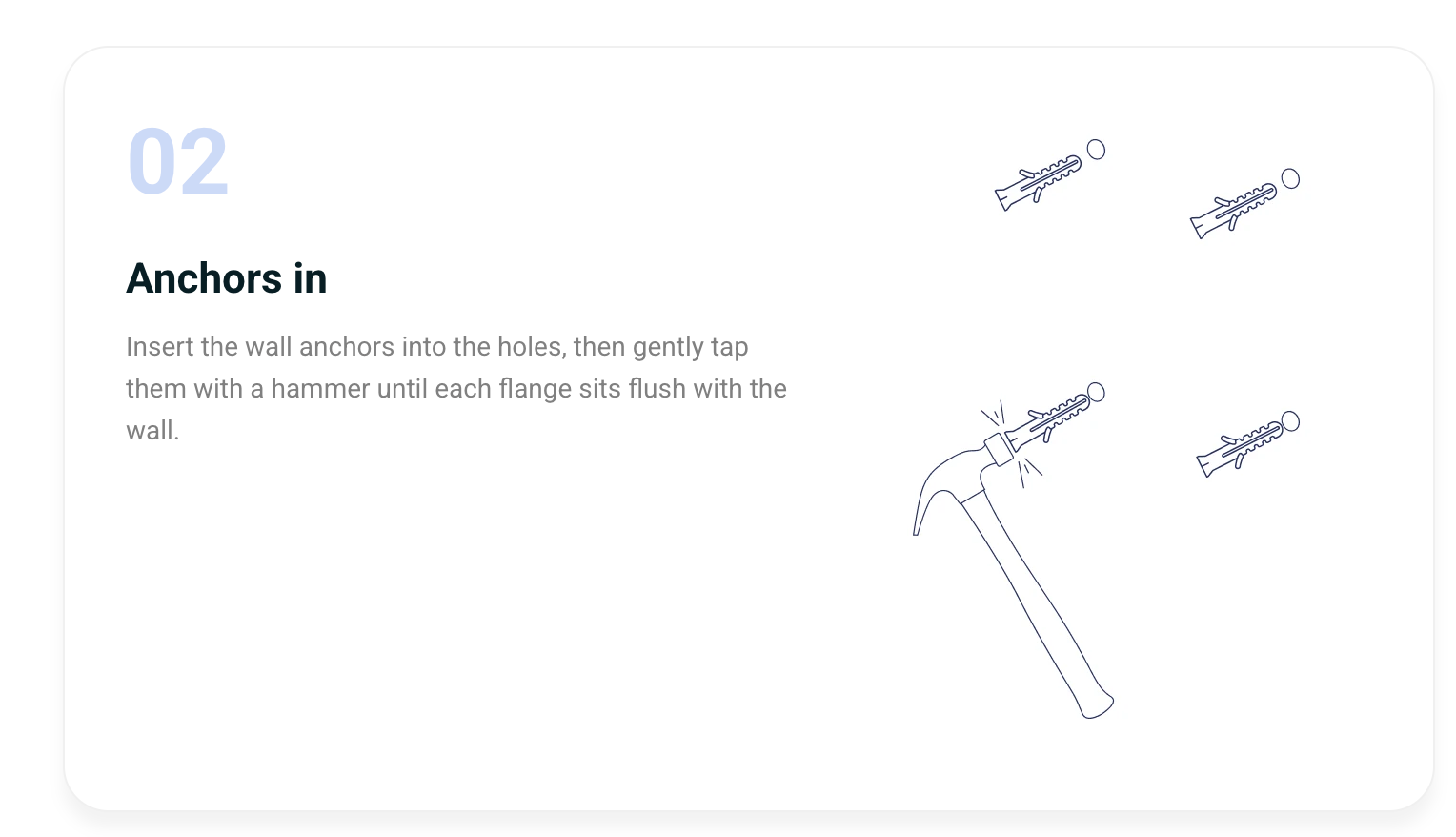

2. Install the wall anchors

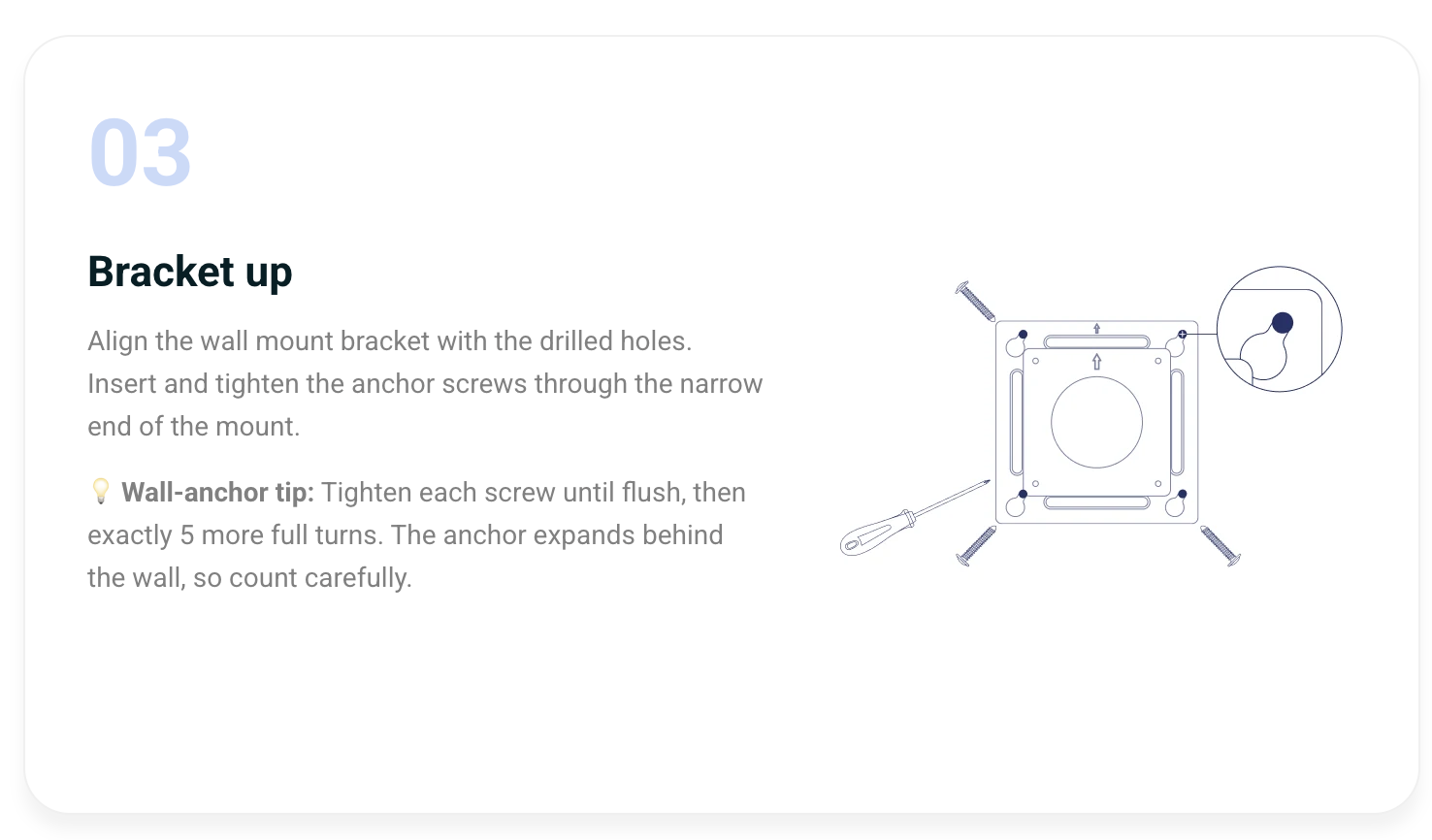

3. Secure the wall mount

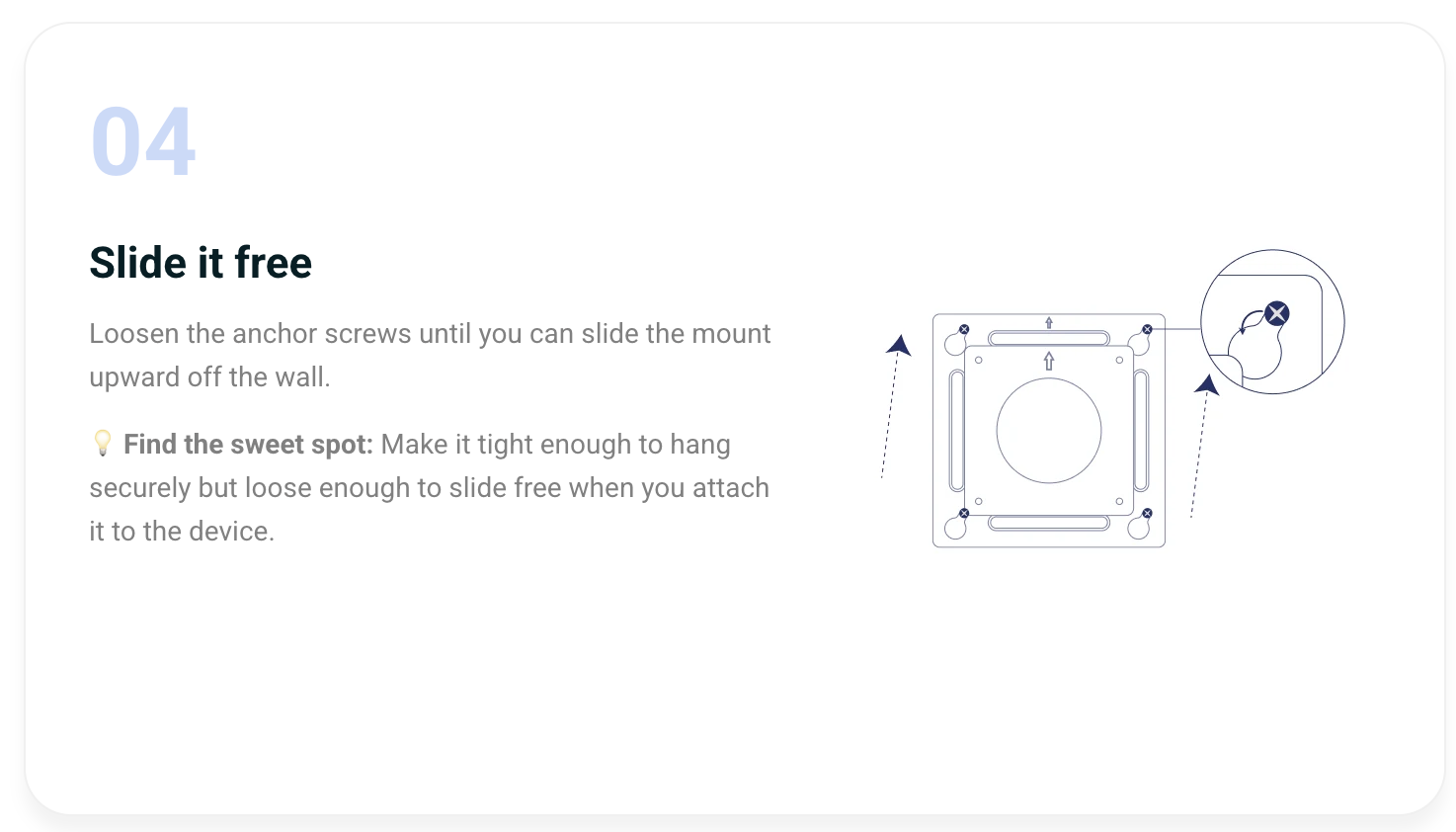

4. Prepare the mount

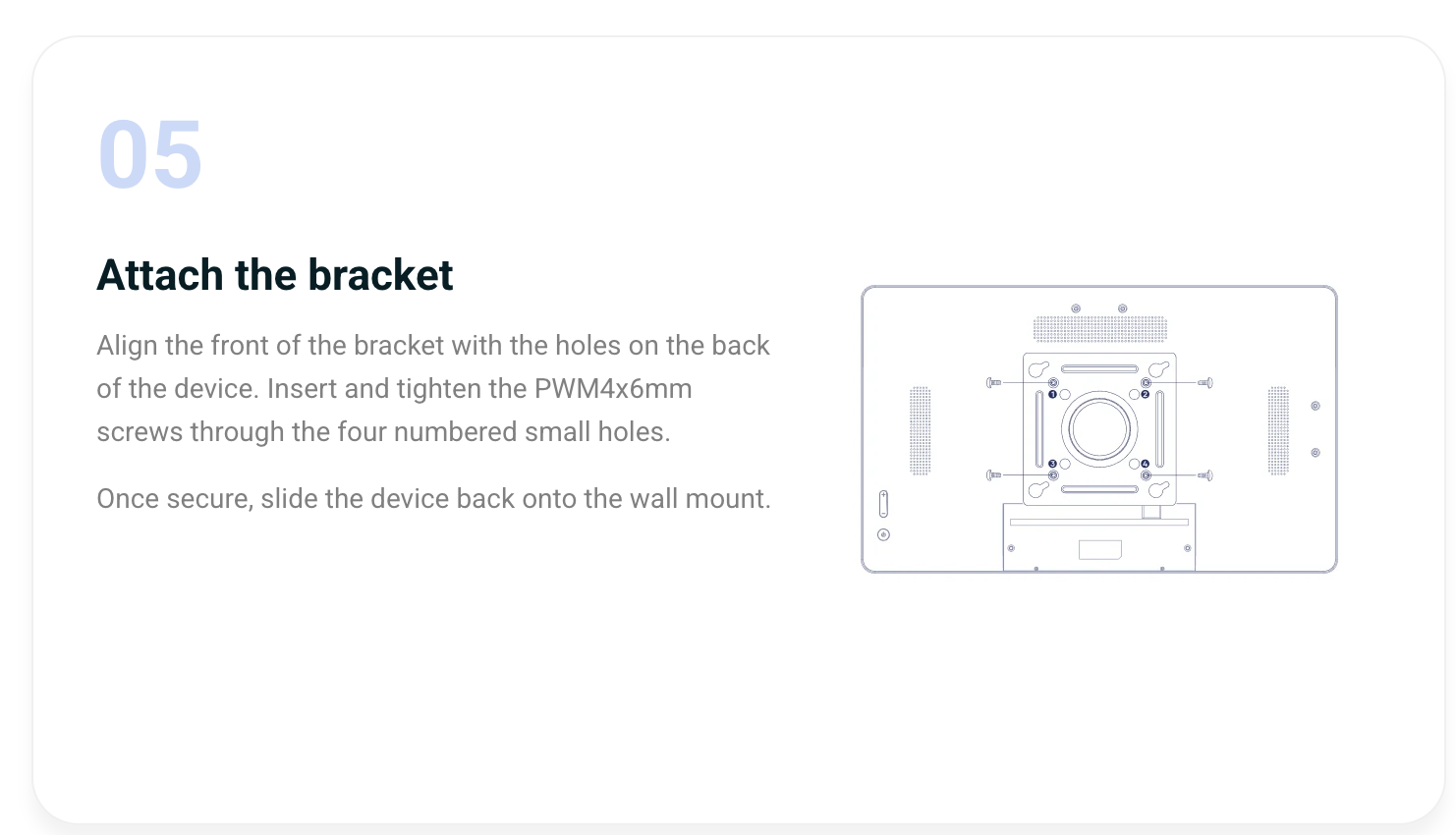

5. Attach the bracket to your Home Hub

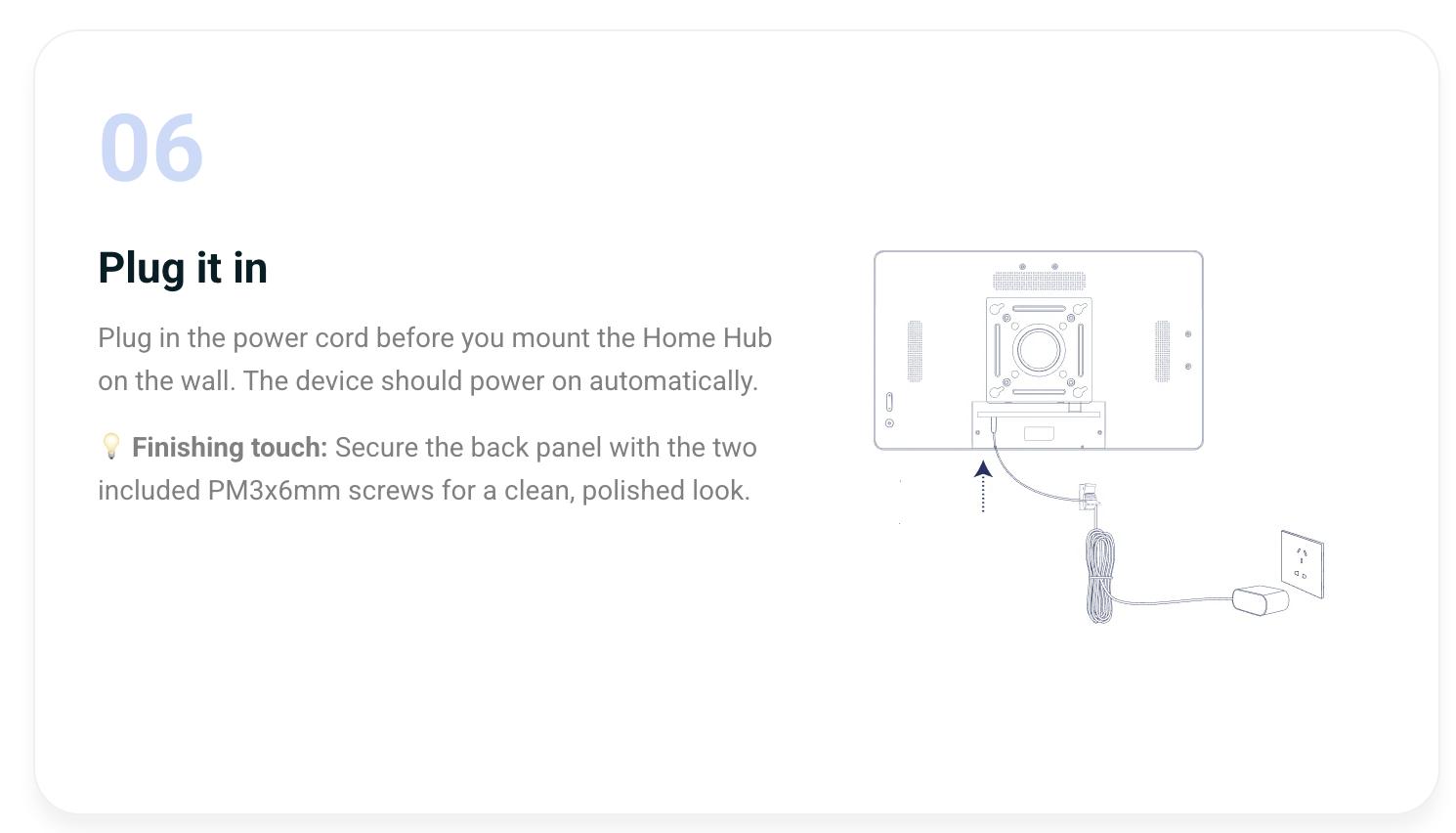

6. Connect the power cable

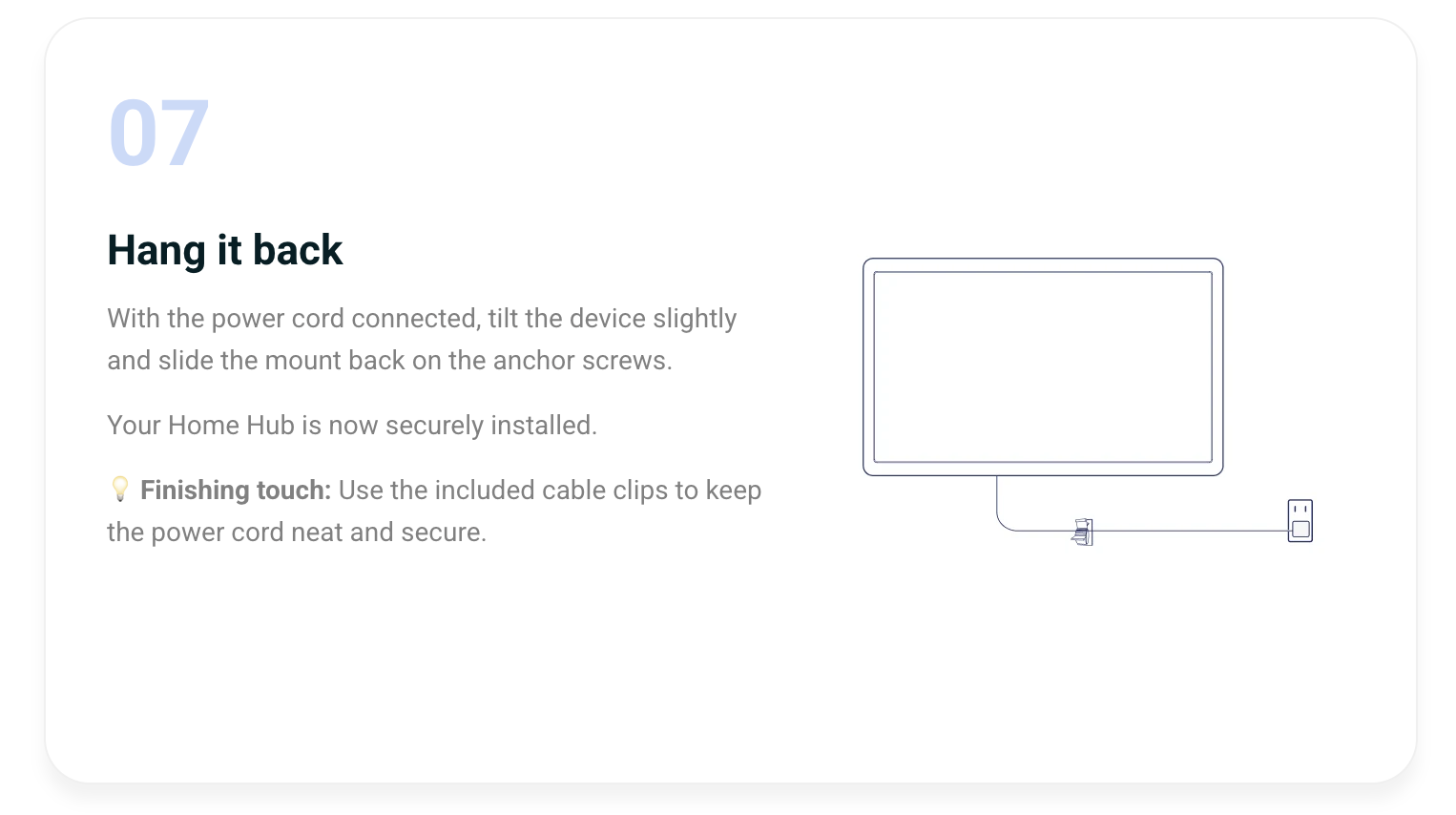

7. Hang your Home Hub

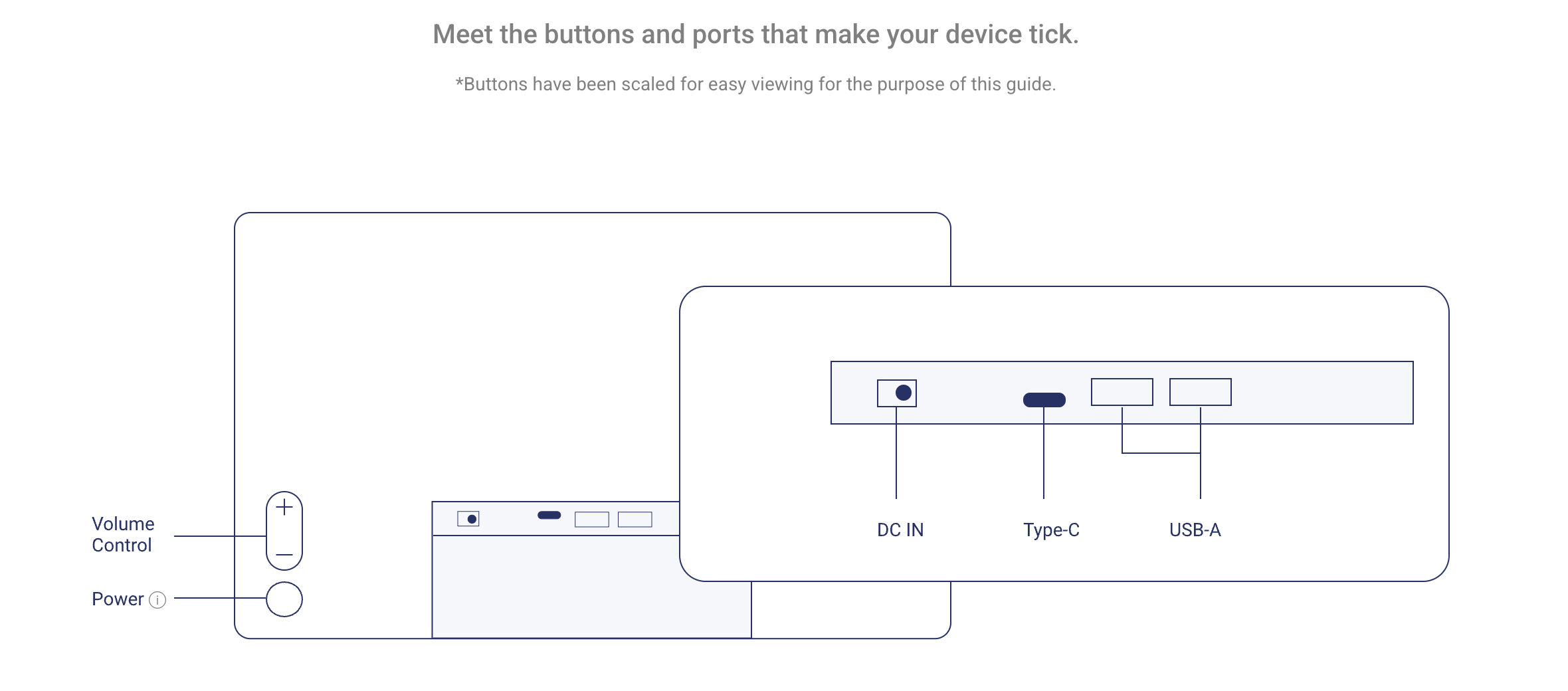

Home Hub buttons and ports
Your 22" Home Hub includes volume controls, a power button, DC IN power connection, USB Type-C port, and USB-A ports.
Need help?
If you’re having trouble mounting your Home Hub, aren’t sure whether you have the correct mounting hardware, or received a damaged or missing mounting component, contact FamilyWall Home Hub Support.
Please include a description of the issue and photos when possible so our team can assist you.
